Injection Down Casing

In this section we describe the load case "Injection Down Casing" available Oliasoft WellDesign™.​

Injection down casing is a burst load case, where the unknown is the internal pressure profile of the casing / tubing

NOTE!
In this documentation we denote any tubular as casing or tubing. All calculations however encompass any tubular, such as tubings, casings, liners, tie-backs etc.


Summary​

Injection down casing is a burst load for production. The pressure profile is calculated using an applied surface pressure at RKB with a hydrostatic injection fluid gradient from surface to the casing shoe.

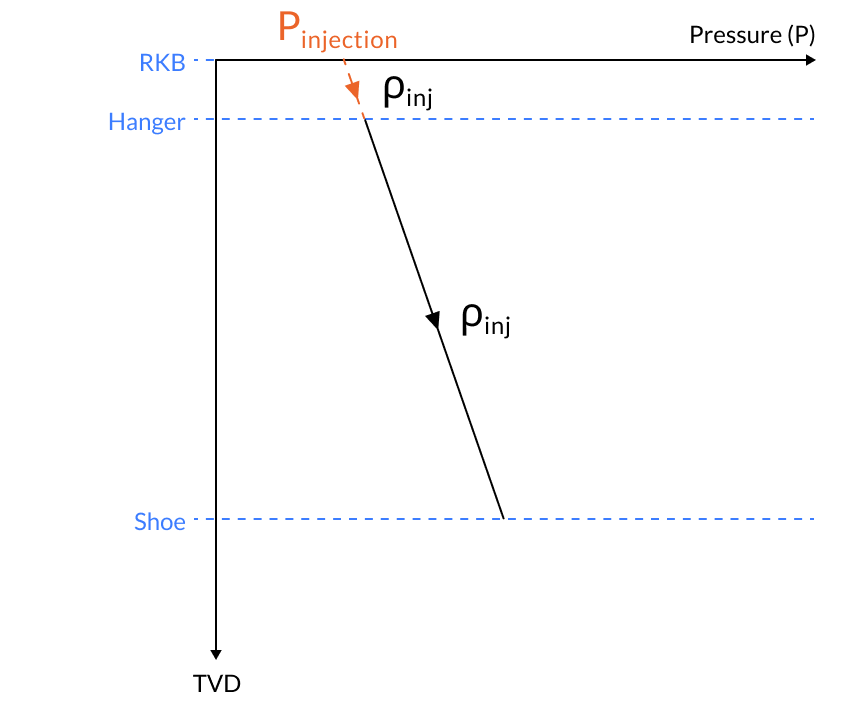

Illustrating Pressure Profile Graph​

Printable Version​

Oliasoft Technical Documentation - Injection Down Casing

Inputs​


The following inputs define the injection down casing load case

  1. The true vertical depth (TVD) along the wellbore as a function of measured depth. Alternatively, the wellbore described by a set of survey stations, with complete information about measured depth, inclination, and azimuth.
  2. The true vertical depth / TVD of
    1. The hanger of the casing/tubing, TVDhangerTVD_{hanger}
    2. The shoe of the tubing, TVDshoeTVD_{shoe}
  3. The applied injection pressure, pinjp_{inj}
  4. The density of the injection fluid, ρinj\rho_{inj} //: # (end - inputs)

Calculation​


The internal pressure profile of the tubing is simply calculated as

pi=pinj+ρinj g h,TVDhanger≤h≤TVDshoep_i = p_\text{inj} + \rho_\text{inj}\, g\, h, \qquad\quad \text{TVD}_{\text{hanger}} \leq h \leq \text{TVD}_{\text{shoe}}
